JYS4522P

JYS4522P

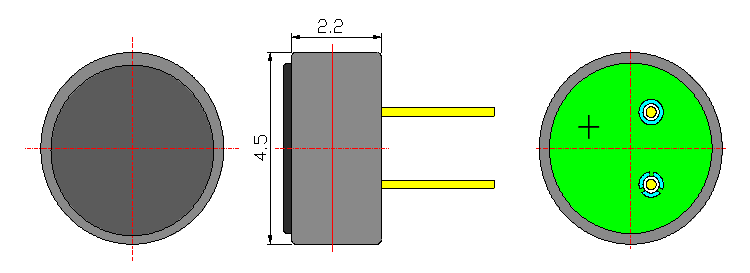

Dimensional 轮廓图               unit:mm

SPECIFICATIONS   规格

Sensitivity:   (0dB=1V/Pa.1KHz)

Directivity:   Omnidirectional

Standard Operation Voltage:2.0V

Output Impedance:＜2.2KΩ

Current Consumption:Max.0.5Ma

Sensitivity Reduction:Within -3dB at 1.5V

S/N Ratio:More than 58dB

Schematic Diagram    测试电路图

Typical Frequency Response Curve   频率响应曲线

Appearance    外观图
